SLP74LVC1G04
SINGLE INVERTER

     The SLP74LVC1G04 is a single inverter.

     Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V environments.

    This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.


Main feature

  • Wide supply voltage range from 1.65V to 5.5V

  • Overvoltage tolerant inputs to 5.5V

  • High noise immunity

  • CMOS low power dissipation

  • IOFF circuitry provides partial Power-down mode operation

  • ±24 mA output drive (VCC = 3.0V)

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Direct interface with TTL levels

  • Specified from -40°C to +85°C and -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

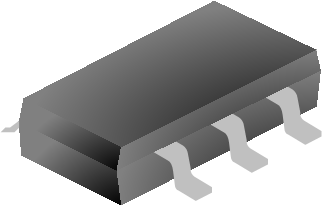

SLP74LVC1G04KMTR SOT-353-5L S4 Halogen free Tape & Reel

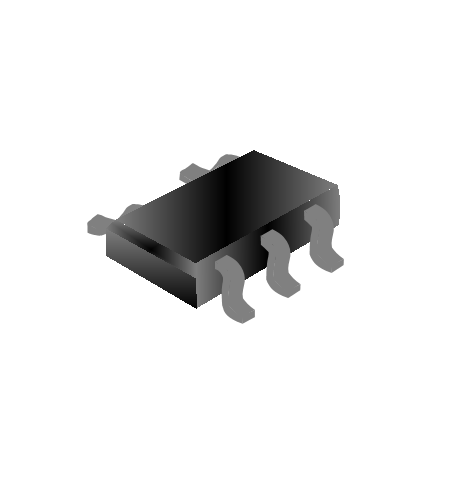

SLP74LVC1G04KBTR SOT-23-5L 1G04 Halogen free Tape & Reel

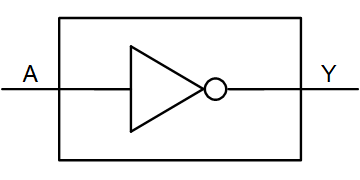

Block Diagram
