SLP74LVC32A
QUADRUPLE 2-INPUT OR GATE

    The SLP74LVC32A devices are quadruple 2-input OR gates.

    Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V system environment.


Main feature

  • Inputs accept Voltages to 5V

  • Operate from 1.2V to 3.6V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC32AJY TSSOP-14-225-0.65 LVC32A Halogen free Tube
SLP74LVC32AJYTR TSSOP-14-225-0.65 LVC32A Halogen free Tape & Reel

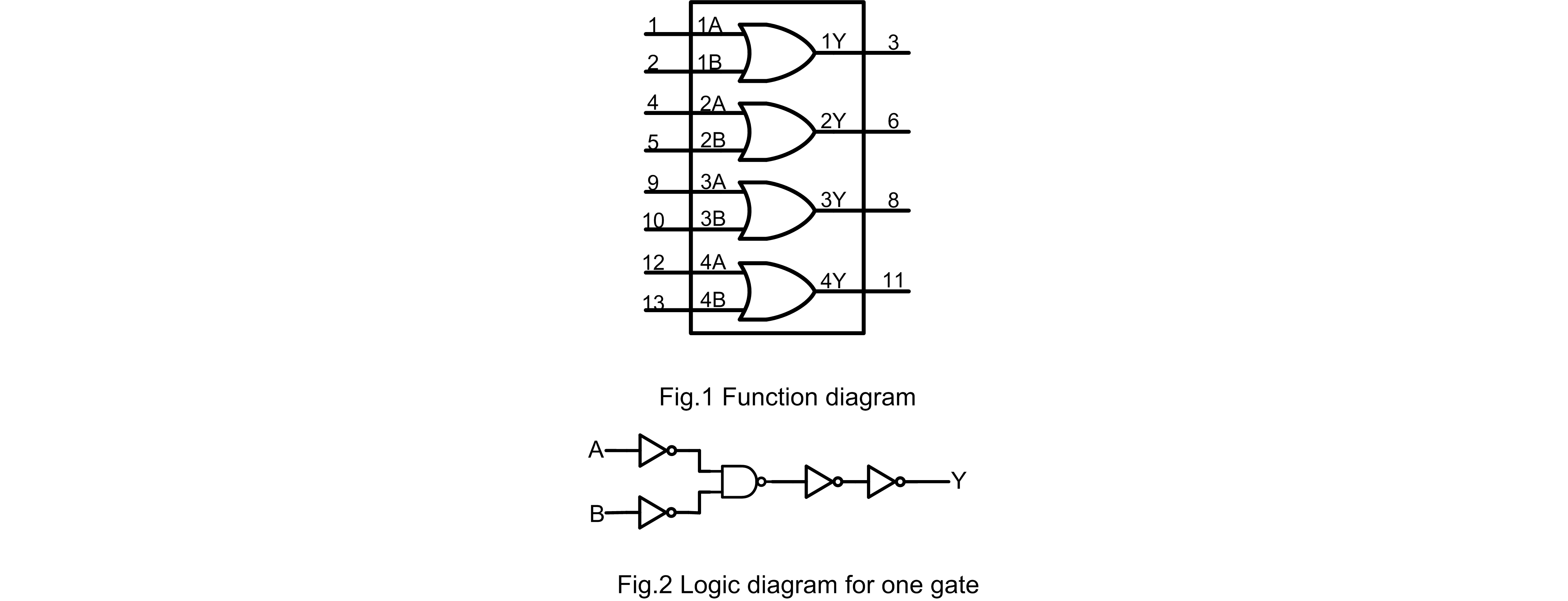

Block Diagram

SLP74LVC32A 英文.png
